The faint scent hits before the diagnostic warning appears. It starts not with a dramatic spark or a pop, but as an acrid, fishy trace of scorched phenolic resin creeping into the quiet hum of your workspace. You glance over at the tempered glass side panel, admiring the sheer engineering mass of a new two-thousand-dollar graphics card running full tilt, completely unaware that millimeters away, microscopic electrical arcs are liquefying plastic.

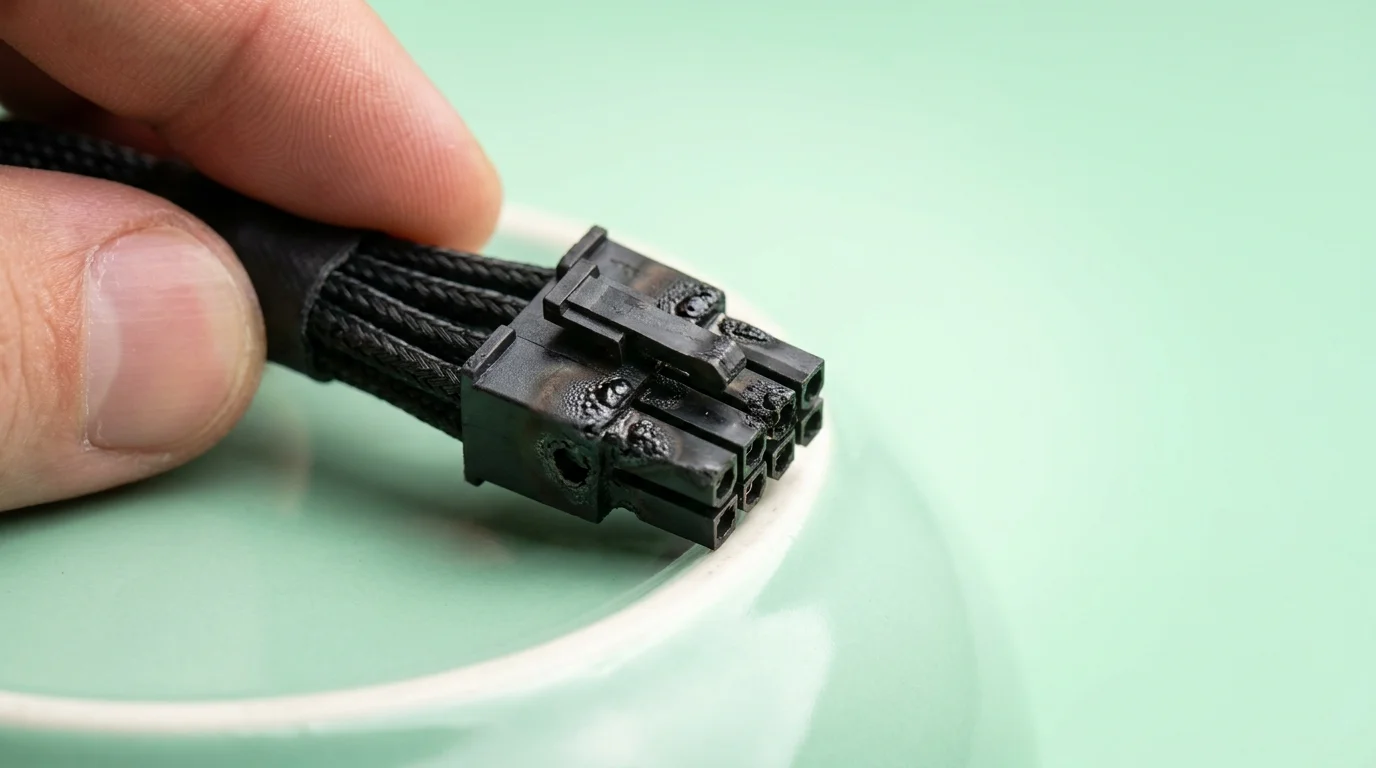

When you pull the side panel away, the heat radiating off the card feels normal for modern silicon pushing six hundred watts. What is not normal is the dull, deformed sheen near the socket. Tug gently on the terminal harness, and it resists, welded together by thermal runaway. A pull reveals the nightmare: a scorched 16-pin power connector plug whose thermoplastic housing has charred into brittle black charcoal, bonding pins into a permanent short.
Enthusiasts across the desktop hardware landscape are waking up to this reality as high-power integration advisories ripple through custom PC circles. The raw computational dominance of modern silicon has outpaced the mechanical tolerances of standard ATX chassis dimensions. What was promised as an ironclad safety revision is stumbling over a single, overlooked physical variable: side-panel clearance.
The Illusion of the Reassuring Click
For decades, PC builders operated on a simple tactile contract: press a plastic clip until it snaps, and your hardware is secure. If an old eight-pin PCIe connector sat half a millimeter loose, nothing catastrophic occurred. The pins maintained enough contact area to carry eight to ten amps without turning into miniature welding torches. Modern extreme-tier cards discard that margin for error entirely.
When six hundred watts flow through a footprint barely wider than a postage stamp, electrical resistance behaves like water forced through a pinched garden hose. The revised 12V-2×6 specification pushed the sense pins back by two millimeters, theoretically preventing the card from drawing maximum current if the connector is not fully seated. Yet this design assumes the terminal stays seated in a straight, undisturbed vector.
- Apple Trade In valuations plummet over tiny screen scratches unless owners clean chassis seams
- EVgo charging stations expose drivers to quishing scams through rogue pasted payment stickers
- Philips Hue smart bulbs drop network sync after power outages without proper power-on states
- Apple Focus Filters silence intrusive workplace app alerts while preserving urgent parent calls
- Xbox Series X vents trap dense dust mats triggering loud cooling fan whines
The moment you press your desktop casing shut against the stiff, thick-gauge harness, you introduce lateral torsion. The plug might look locked on the outside, but the micro-terminals inside pitch upward at an imperceptible angle. That microscopic tilt reduces the pin contact patch from two square millimeters down to a razor-thin point. Resistance spikes, ambient heat builds inside the terminal block, and thermal runaway takes over in total silence.
Under the Macro Lens with Custom Integrators
Greg Vance, a 44-year-old boutique system builder in Austin, Texas, spends his weeks assembling high-performance workstations for visual effects studios. In early test runs with the latest flagship platforms, Vance started noticing terminal temperatures climbing beyond 195 degrees Fahrenheit under prolonged 3D render loads, despite fully engaged latching clips.
“The spec sheet tells you the sense pins will protect you from a catastrophic melt, but physics does not care about clever logic gates when lateral force levers the connector open,” Vance explains while examining a deformed harness terminal. “When that thick bundle of 16 AWG wire pushes against tempered glass, the bottom four ground terminals lose up to forty percent of their surface contact. The safety circuit sees the connection as present, but the physical pins are literally glowing red hot inside the block.”
Chassis Real Estate and Strain Profiles
The danger does not present itself identically in every system; instead, it shifts dramatically based on your case architecture and how you route high-draw cabling.
The Compact Small Form Factor Setup
Small-footprint cases turn clearance into a genuine hazard. In chassis measuring under fifteen liters, the power cable is routinely bent directly against the exterior frame within fifteen millimeters of the socket. This sharp radial bend splits the internal female crimp terminals apart like fingers opening, concentrating entire loads across single points. If you build in tight cases, standard straight harnesses are an unacceptable risk.
Traditional Mid-Tower Chassis
Even spacious cases present deceptive clearance. While the chassis interior appears vast, the distance between the card’s wide power socket and the flat side glass is frequently under 1.2 inches. Builders assume that if the glass closes without aggressive force, the clearance is adequate. In practice, continuous mechanical pressure against the wiring collar slowly walks the connector out of square over heat-cool expansion cycles.
Vertical Riser Mounts
Rotating the graphics card to face outward relieves lateral pressure from the chassis window, but it introduces a downward gravitational drag. Without dedicated harness support brackets, the heavy power cord acts as a pendulum, gradually pulling the top row of sense and twelve-volt pins downward over months of use.
The Zero-Defect Seating Protocol
Securing your build does not require expensive custom liquid loops, but it demands an uncompromising mechanical discipline before you ever flip the power supply switch.
- Inspect terminal pins with a flashlight before installation to verify no factory female contacts are splayed or pushed back.
- Seat the 16-pin connector while the graphics card is outside the chassis or completely unrestricted by side panels.
- Listen and feel for the physical catch, then pull outward firmly on the connector body—not the wires—to verify the latch is locked.
- Ensure a mandatory thirty-millimeter straight run of unbent cable exiting the socket before initiating any chassis-routing curve.
- Verify side-panel clearance by sliding a business card between the closed window and the harness; if the card pinches, clearance is insufficient.
Your tactical toolkit should be straightforward: keep thirty millimeters (1.18 inches) of dead-straight harness clearance, ensure zero contact with tempered glass panels, and monitor terminal shell temperatures during your initial stress tests. If an external thermistor or thermal camera registers anything above 150 degrees Fahrenheit at the connector base during peak draw, turn the machine off immediately.
The Quiet Discipline of High-Density Power
We have entered an era where desktop components consume the power of kitchen appliances while retaining the delicate tolerances of laboratory instruments. There is an alluring urge to slap bleeding-edge hardware into a case, shut the door, and jump straight into high-refresh gaming. But high-tier hardware respects only mechanical precision, not enthusiasm.
Taking thirty minutes to measure your clearances, relieve harness tension, and check terminal seating is not an annoying maintenance chore. It is the core practice of modern computing. When your machine hums under full load for hours, whisper-quiet and cool to the touch, that peace of mind is worth far more than the rush of closing the case five minutes early.
Clearance is not merely an aesthetic choice; in modern high-draw computing, physical space is an active thermal insulator.
| Key Point | Detail | Added Value for the Reader |
|---|---|---|
| Connector Revision Delta | 12V-2×6 shortens sense pins by 2mm compared to legacy 12VHPWR. | Explains why software safety stops power delivery if unseated, but still cannot prevent thermal runaway from cable bend torque. |
| Clearance Threshold | Minimum 30mm (1.18 in) straight wire run required from plug exit. | Prevents premature pin splaying and catastrophic terminal resistance spikes before closing chassis. |
| Thermal Warning Signs | Surface temperatures exceeding 150°F (65°C) at the plastic housing. | Provides an actionable physical threshold to diagnose dangerous resistance before melting occurs. |
FAQ
How does the 12V-2×6 connector differ from the older 12VHPWR design?
The newer 12V-2×6 specification pushes the micro sense pins back by two millimeters and lengthens the twelve-volt power terminals. This ensures current will not flow unless the plug is seated almost completely down to the base of the socket.Why are cables still burning if the new connector is safer?
The safety mechanisms detect whether the connector is pushed in, but they cannot measure physical strain. When cables bend sharply against case glass, internal pin contacts tilt inside the housing, concentrating current across micro-contact patches that generate extreme thermal spikes.Can I use an angled 90-degree adapter to fix the issue?
Only use manufacturer-certified, single-piece angled cables directly from your power supply maker. Third-party rigid adapters add another mechanical failure point and have been the subject of widespread recalls.What does a damaged connector smell like before smoke appears?
Early thermal runaway produces a sharp, slightly sweet, fishy chemical odor from melting thermoplastic long before you see visible smoke or system shutdown warnings.Will undervolting my graphics card protect the connector?
Undervolting lowers total power draw and overall thermals, which reduces current stress on the pins. However, it cannot compensate for an improperly seated or mechanically twisted plug.
